Cutback Bitumen SC-800

Cutback Bitumen Slow Curing 800 (SC-800) is a high-viscosity form of cutback bitumen that has been mixed with a slow-evaporating petroleum solvent to lower its viscosity for easier application at lower temperatures. The slow-curing property is due to the use of heavier oils, such as diesel or kerosene, which evaporate slowly, allowing more time for the bitumen to penetrate and bond with the aggregate or surface materials.

Appearance: Black solid or a viscous liquid
Standards: ASTM D2026
HS Code: 27150090

Package: Bitumen are packed in

New Steel Drums of 200Kg
Reconditioned Steel Drums of 200Kg
IBC Tank of 1 Metric Ton

Cutback Bitumen SC-800 (ASTM D2026) - Technical Specifications

Properties	Units	Limits	Test Methods
Kinematic Viscosity at 60°C	mm2/s	800-1600	ASTM D-2170
Flash Point Cleveland open cup	°C	Min. 93	ASTM D92
Distillation test:
Total distillate to 360°C	% Vol	2-12	ASTM D402
Solubility in Trichloroethylene	% Wt	Min. 99	ASTM D2042
Kinematic viscosity on distillation residue at 60°C	mm2 /s	2000-16,000	ASTM D2171
Asphalt residue:
Residue of 100 penetration	%	Min. 70	ASTM D5
Ductility of 100 penetration residue at 25°C	cm	Min. 100	ASTM D113
Water	% Wt	Max. 0.5	ASTM D-95

Main Applications Of Cutback Bitumen SC-800

The main applications of Cutback Bitumen Slow Curing (SC-800) are in heavy-duty road construction, maintenance, and repair, especially where thicker bitumen layers and extended curing times are required. Key applications include:

Prime Coating: Cutback Bitumen SC-800 is used as a prime coat to prepare road base surfaces for asphalt paving. Its high viscosity ensures deep penetration into the base layer, creating a strong bond between the base and subsequent asphalt layers.
Surface Dressing: In surface dressing, Cutback Bitumen SC-800 is sprayed onto road surfaces and covered with aggregate to form a durable and protective layer. Its slow curing allows for better bonding, making it ideal for roads that endure heavy traffic.
Cold Mix Asphalt: Cutback Bitumen SC-800 is applied in cold mix asphalt formulations for repairing roads, filling potholes, and sealing cracks. Its high viscosity makes it suitable for thicker repairs and more demanding road conditions.
Gravel Road and Base Course Stabilization: SC-800 is effective in stabilizing unpaved or gravel roads, especially those subjected to heavy loads and traffic. Its slow-curing properties allow for deeper penetration into loose materials, enhancing road stability.
Heavy-Duty Road Construction: Cutback Bitumen SC-800 is commonly used in the construction of base courses for highways and heavy-duty roads, where its high viscosity and slow curing provide superior bonding and long-term strength.

Various Packing Method for Cutback Bitumen SC800

Packing cutback bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of cutback bitumen, the transportation method, and the end-use. Here are the various methods used to pack cutback bitumen:

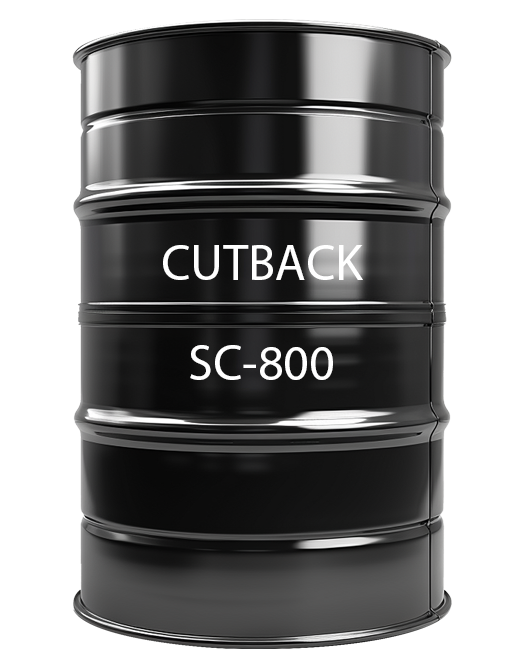

Steel Drum Packing

Cutback Bitumen is commonly packed in new or re-conditioned steel drums, which are robust and provide good protection during transportation.

Drum Specification

Tare Weight	16±0.5Kg
Net Weight	190±5Kg
Gross Weight	206±5Kg

Loadability in Containers

	No. of Drums	Net Weight
In 20Ft Contianer
with Pallet	80	~14.8 Ton
without Pallet	80	~14.80 Ton
In 40Ft Contianer
with Pallet	140	~25.90 Ton
without Pallet	140	~25.90 Ton

IBC Tank Packing

Cutback Bitumen is commonly packed in new IBC tank or re-conditioned IBC tank, which are robust and provide good protection during transportation.

IBC Tank Specification

Tare Weight	65±3Kg
Net Weight	950±50Kg
Gross Weight	1015±50Kg

Loadability in Containers

	No. of Tanks	Net Weight
In 20Ft Container	20	~19.0 Ton
In 40Ft Container	28	~27.0 Ton
