Bitumen Class 240

Bitumen Class 240 or C240 is a viscosity-graded bitumen with a viscosity of 240 Poise at 60°C. Bitumen Class 240 is designed for use in environments that require a higher resistance to deformation, especially under heavy traffic and in regions with warmer climates.

Appearance: Black solid or a viscous liquid
Standards: AS 2008-2013
HS Code: 27132000

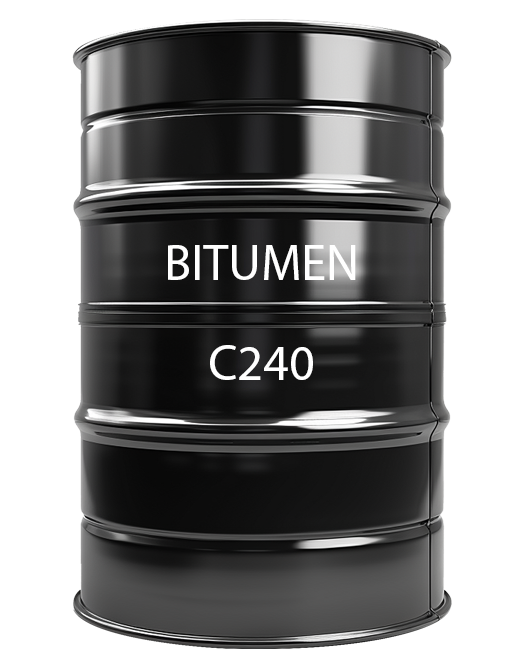

Package: Bitumen are packed in

New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
Jumbo Bags of 1Ton
Bulk Vessel / Bitumen Tank Container

Bitumen Class 240 (AS 2008-2013) - Technical Specifications

Properties	Units	Limits	Test Methods
Viscosity at 60°C	Pa.s	190-280	ASTM D2171
Viscosity at 135°C	Pa.s	0.32-0.55	ASTM D2170
Penetration @25°C (77°F), 100gm, 5sec	0.1MM	Min. 53	ASTM D5
Flash Point Cleveland open cup	°C	Min. 250	ASTM D92
Matter insoluble in toluene	%Wt	Max. 1.0	ASTM D4072
Tests on residue from thin-film oven test:
Viscosity of residue at 60°C as % of original	%	Max. 300	ASTM D2171

*As per Australian Standards AS 2008-2013

Main Applications Of Bitumen Class 240

The main applications of Bitumen Class 240, focus on projects requiring a high resistance to deformation and durability under heavy loads. This high-viscosity grade is ideal for use in regions with warmer climates and in areas that experience heavy traffic and industrial use.

High-Traffic Roads and Highways: Used for major highways, expressways, and freeways that endure constant heavy traffic. Its high viscosity ensures resistance to rutting and deformation caused by large volumes of vehicles.
Industrial Roads: Ideal for industrial areas, ports, and logistics hubs where the pavements are exposed to heavy loads from trucks, machinery, and frequent movement of cargo.
Warm Climate Regions: Suitable for regions with high temperatures, where softer grades of bitumen might lose integrity and deform. Class 240 remains stable in hot weather, preventing softening and rutting.
Airport Runways and Taxiways: Applied in airport infrastructure, such as runways, taxiways, and aprons, where the pavement must support the weight and impact of aircraft. The bitumen ensures stability and prevents surface deformation.
Heavy-Duty Pavements: Used in truck stops, loading bays, and freight terminals, where heavy vehicles and constant stopping, turning, and loading can stress the pavement. Class 240 ensures durability under these high-stress conditions.
Roundabouts and Intersections: Applied in areas like roundabouts and intersections, which experience concentrated traffic stress from vehicles braking, accelerating, and turning, increasing the risk of surface damage.

Bitumen Class 240 is primarily used in high-traffic, heavy-load environments, including highways, industrial roads, airports, and areas with warm climates. Its resistance to deformation and stability under heat make it ideal for demanding applications where heavy-duty performance is essential.

Various Packing Method for Bitumen

Packing bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of bitumen, the transportation method, and the end-use. Here are the various methods used to pack bitumen:
