Oxidised Bitumen 115/15

Oxidized Bitumen 115/15 (also known as Blown Bitumen 115/15) is a specialized grade of bitumen created through the oxidation process, where air is blown through bitumen at high temperatures. This results in a material with unique properties, characterized by a high softening point and low penetration value.

• Appearance: Black solid or a viscous liquid when heated
• Standards: BS EN 13304-2009
• HS Code: 27132000

Package: Bitumen are packed in

• New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
• Jumbo Bags of 1Ton
• Other Pack 25kg Kraft/PP Bag, Metal Pails, Carton Box

• TDS Technical Data Sheet - EN (English)
• SDS Safety Data Sheet - EN (English)

Oxidised Bitumen 115/15 (BS EN 13304-2009) - Technical Specifications

Main Applications Of Oxidised Bitumen 115/15

Oxidized Bitumen 115/15 is a high-performance grade of bitumen produced through an oxidation process, resulting in a material with a high softening point and low penetration value. Its specifications include a softening point of 115°C and a penetration value of 15 dmm, making it suitable for various applications.

1. High-Temperature Applications: Used in applications where high-temperature resistance is required, such as in roofing materials and thermal insulation.

2. Waterproofing and Roofing: Employed in roofing membranes, felt products, and sealants to protect structures from moisture and water infiltration.

3. Industrial Adhesives: Serves as a component in adhesives used for bonding materials in various industrial applications.

4. Corrosion Protection: Coats pipelines, storage tanks, and metal surfaces to protect against rust and chemical degradation.

5. Construction Industry: Used in mastic asphalt and as a modifier in concrete to improve water resistance and durability.

6. Electrical Insulation: Provides insulation for electrical cables and equipment, ensuring safety in high-temperature environments.

Overall, oxidized bitumen 115/15 is particularly valuable in applications that require superior heat resistance, durability, and waterproofing, making it suitable for construction, industrial, and roofing applications.

Various Packing Method for Oxidised Bitumen 115/15

Packing Oxidised bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the transportation method, and the end-use. Here are the various methods used to packing oxidised bitumen:

Steel Drum Packing

Oxidised Bitumen is commonly packed in new or re-conditioned steel drums, which are robust and provide good protection during transportation.

Drum Specification

	Weight
	Tare	Net	Gross
150Kg	8.2±0.2Kg	150±3Kg	158±3Kg
180Kg	9.4±0.2Kg	180±3Kg	190±3Kg
200Kg	16±0.5Kg	200±5Kg	216±5Kg

Loadability in Containers

	No. of Drums	Net Weight
150Kg Drums in 40Ft Contianer
with Pallet	160	~24.0 Ton
without Pallet	164	~24.60 Ton
180Kg Drums in 20Ft Contianer
with Pallet	80	~14.40 Ton
without Pallet	110	~19.8 Ton
200Kg Drums in 20Ft Contianer
with Pallet	80	~16.0 Ton
without Pallet	80	~16.0 Ton

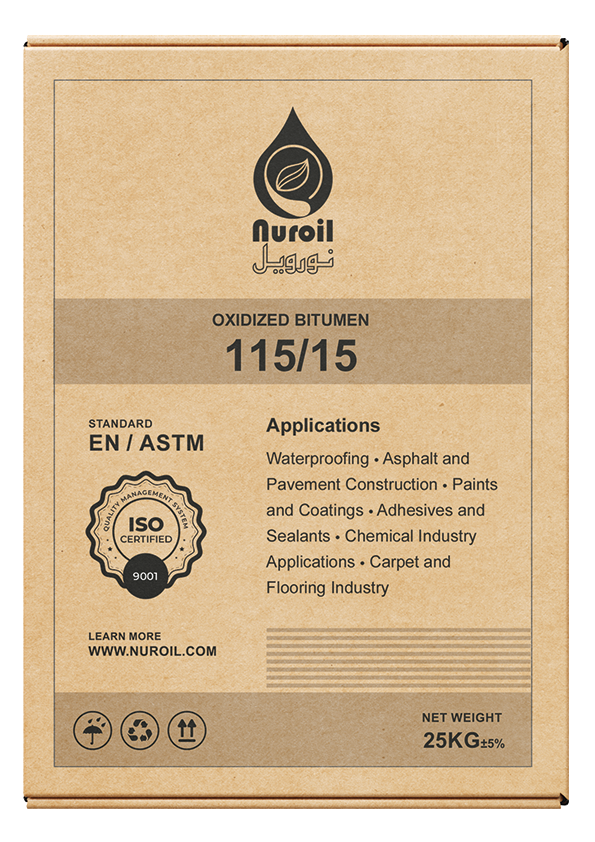

Kraft Bags / PP Bags / Carton Box

Oxidised Bitumen is packed in Kraft/PP Bags or Carton Box of 25Kg, which are robust and provide good protection during transportation.

Loadability in Containers

	Container
	In 20Ft	In 40Ft
No. of Pallet	20	26
Net Weight	~20.0 Ton	~26.0 Ton
Each pallet is loaded with 40 Kraft/PP Bags or 40 Carton Boxes
