Oxidised Bitumen 85/25

Oxidized Bitumen 85/25 (also called Blown Bitumen 85/25) is a specialized grade of bitumen that has undergone a controlled oxidation process. This process modifies the physical properties of the bitumen, making it more rigid and less sensitive to temperature changes compared to penetration-grade bitumen.

• Appearance: Black solid or a viscous liquid when heated
• Standards: BS EN 13304-2009
• HS Code: 27132000

Package: Bitumen are packed in

• New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
• Jumbo Bags of 1Ton
• Other Pack 25kg Kraft/PP Bag, Metal Pails, Carton Box

• TDS Technical Data Sheet - EN (English)
• SDS Safety Data Sheet - EN (English)

Oxidised Bitumen 85/25 (BS EN 13304-2009) - Technical Specifications

Main Applications Of Oxidised Bitumen 85/25

Oxidized Bitumen 85/25 has several industrial applications due to its high softening point, low penetration value, excellent adhesion, and resistance to water and chemicals. Below are its primary applications:

1. Waterproofing and Roofing: Used in roofing membranes, sealants, and damp-proof courses to prevent water and moisture infiltration.

2. Road Construction and Maintenance: Acts as a crack sealant, joint filler, and expansion joint material in roads and bridges.

3. Pipe Coating and Corrosion Protection: Protects pipelines and metal surfaces from corrosion, especially in harsh environments.

4. Adhesives and Flooring: Serves as an adhesive for tiles and carpets and forms a durable underlay for flooring.

5. Electrical Insulation: Provides insulation for electric cables and is used in capacitors.

6. Construction Industry: Improves water resistance in concrete and enhances flexibility in mastic asphalt.

7. Marine and Offshore Applications: Protects marine structures and insulates ship decks.

8. Packaging and Container Sealing: Coats drums and containers to prevent leakage and corrosion.

This grade’s resistance to high temperatures and moisture makes it ideal for demanding environments like infrastructure, industrial setups, and marine settings.

Various Packing Method for Oxidised Bitumen 85/25

Packing Oxidised bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the transportation method, and the end-use. Here are the various methods used to packing oxidised bitumen:

Steel Drum Packing

Oxidised Bitumen is commonly packed in new or re-conditioned steel drums, which are robust and provide good protection during transportation.

Drum Specification

	Weight
	Tare	Net	Gross
150Kg	8.2±0.2Kg	150±3Kg	158±3Kg
180Kg	9.4±0.2Kg	180±3Kg	190±3Kg
200Kg	16±0.5Kg	200±5Kg	216±5Kg

Loadability in Containers

	No. of Drums	Net Weight
150Kg Drums in 40Ft Contianer
with Pallet	160	~24.0 Ton
without Pallet	164	~24.60 Ton
180Kg Drums in 20Ft Contianer
with Pallet	80	~14.40 Ton
without Pallet	110	~19.8 Ton
200Kg Drums in 20Ft Contianer
with Pallet	80	~16.0 Ton
without Pallet	80	~16.0 Ton

Kraft Bags / PP Bags / Carton Box

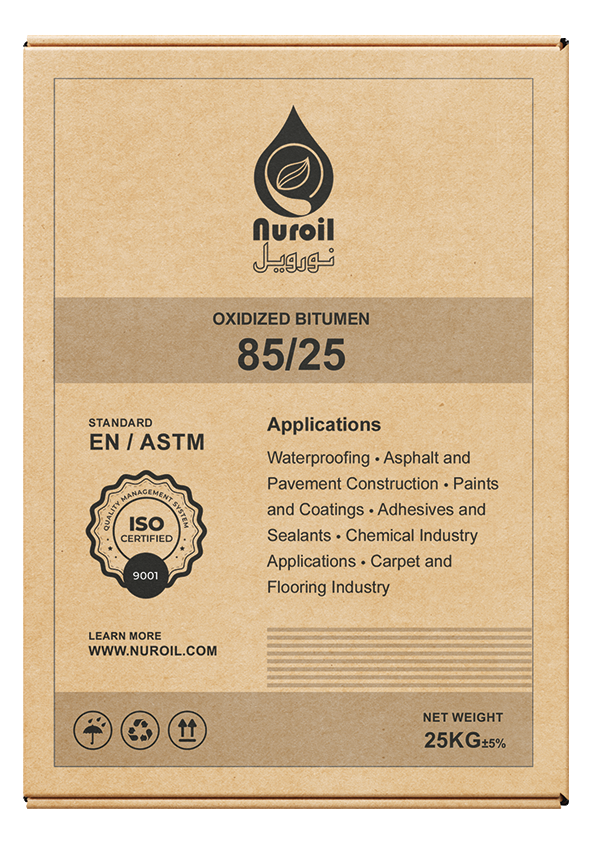

Oxidised Bitumen is packed in Kraft/PP Bags or Carton Box of 25Kg, which are robust and provide good protection during transportation.

Loadability in Containers

	Container
	In 20Ft	In 40Ft
No. of Pallet	20	26
Net Weight	~20.0 Ton	~26.0 Ton
Each pallet is loaded with 40 Kraft/PP Bags or 40 Carton Boxes
