Cutback Bitumen SC-3000

Cutback Bitumen Slow Curing 3000 (SC-3000) is a high-viscosity type of cutback bitumen that has been blended with a slow-evaporating petroleum solvent. This higher viscosity makes SC-3000 suitable for applications requiring thicker layers of bitumen and enhanced performance in heavy-duty scenarios.

Appearance: Black solid or a viscous liquid
Standards: ASTM D2026
HS Code: 27150090

Package: Bitumen are packed in

New Steel Drums of 200Kg
Reconditioned Steel Drums of 200Kg
IBC Tank of 1 Metric Ton

Cutback Bitumen SC-3000 (ASTM D2026) - Technical Specifications

Properties	Units	Limits	Test Methods
Kinematic Viscosity at 60°C	mm2/s	800-1600	ASTM D-2170
Flash Point Cleveland open cup	°C	Min. 93	ASTM D92
Distillation test:
Total distillate to 360°C	% Vol	2-12	ASTM D402
Solubility in Trichloroethylene	% Wt	Min. 99	ASTM D2042
Kinematic viscosity on distillation residue at 60°C	mm2 /s	2000-16,000	ASTM D2171
Asphalt residue:
Residue of 100 penetration	%	Min. 70	ASTM D5
Ductility of 100 penetration residue at 25°C	cm	Min. 100	ASTM D113
Water	% Wt	Max. 0.5	ASTM D-95

Main Applications Of Cutback Bitumen SC-3000

The main applications of Cutback Bitumen Slow Curing 3000 (SC-3000) are in heavy-duty road construction and maintenance, where high viscosity and extended curing times are essential. Key applications include:

Prime Coating: Cutback Bitumen SC-3000 is used as a prime coat on granular or unbound bases to prepare the surface for asphalt layers, ensuring strong adhesion.
Surface Dressing: It is applied in surface dressing to create a thick, durable layer on road surfaces, capable of withstanding heavy traffic and environmental conditions.
Cold Mix Asphalt: Cutback Bitumen SC-3000 is utilized in cold mix asphalt for patching and repairing large road defects, providing a robust and long-lasting repair solution.
Stabilization of Heavy-Duty Roads: It is effective for stabilizing unpaved or gravel roads that bear heavy loads, enhancing their durability and structural integrity.
Base Course Construction: Cutback Bitumen SC-3000 is employed in constructing base courses for highways, airport runways, and industrial roads, where its high viscosity offers excellent bonding and strength.
Heavy Load-Bearing Road Construction: This grade is suitable for constructing roads that need to withstand extreme traffic or heavy loads, such as industrial access roads or port areas.

Cutback Bitumen SC-3000's characteristics make it ideal for projects requiring thick layers of bitumen and exceptional performance under demanding conditions.

Various Packing Method for Cutback Bitumen SC3000

Packing cutback bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of cutback bitumen, the transportation method, and the end-use. Here are the various methods used to pack cutback bitumen:

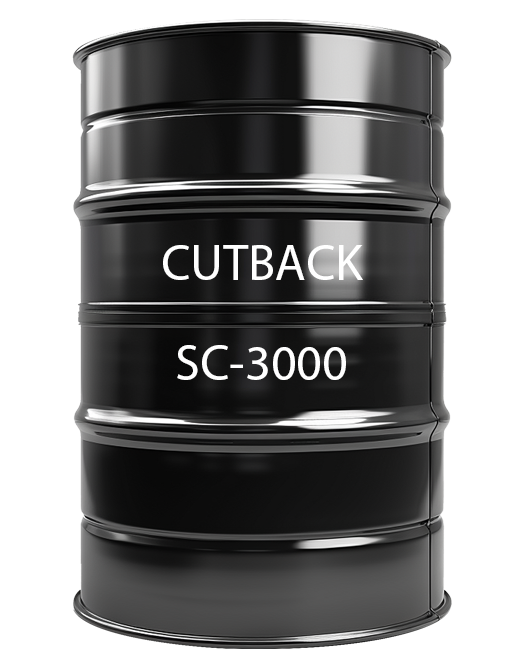

Steel Drum Packing

Cutback Bitumen is commonly packed in new or re-conditioned steel drums, which are robust and provide good protection during transportation.

Drum Specification

Tare Weight	16±0.5Kg
Net Weight	190±5Kg
Gross Weight	206±5Kg

Loadability in Containers

	No. of Drums	Net Weight
In 20Ft Contianer
with Pallet	80	~14.8 Ton
without Pallet	80	~14.80 Ton
In 40Ft Contianer
with Pallet	140	~25.90 Ton
without Pallet	140	~25.90 Ton

IBC Tank Packing

Cutback Bitumen is commonly packed in new IBC tank or re-conditioned IBC tank, which are robust and provide good protection during transportation.

IBC Tank Specification

Tare Weight	65±3Kg
Net Weight	950±50Kg
Gross Weight	1015±50Kg

Loadability in Containers

	No. of Tanks	Net Weight
In 20Ft Container	20	~19.0 Ton
In 40Ft Container	28	~27.0 Ton
