Cutback Bitumen RC-70

Cutback Bitumen Rapid Curing 70 (RC-70) is a type of cutback bitumen that is blended with a fast-evaporating petroleum solvent to lower its viscosity, making it easier to apply at lower temperatures. The "70" indicates its viscosity grade, suggesting it has a relatively low viscosity compared to other grades of cutback bitumen.

Appearance: Black solid or a viscous liquid
Standards: ASTM D2028 or AASHTO M81-92 2008
HS Code: 27150090

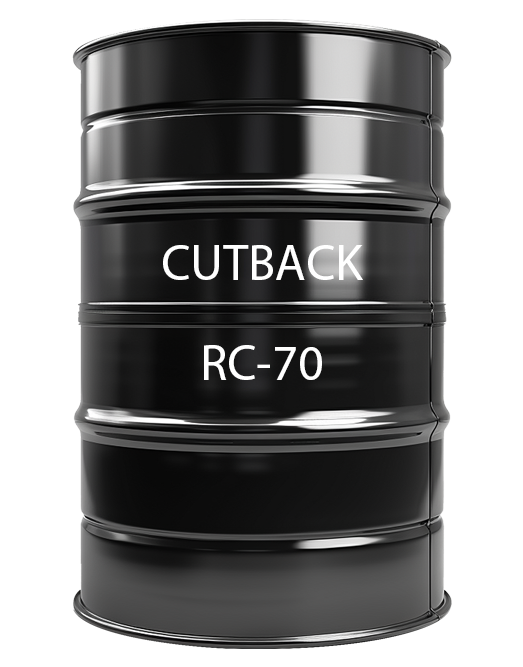

Package: Bitumen are packed in

New Steel Drums of 200Kg
Reconditioned Steel Drums of 200Kg
IBC Tank of 1 Metric Ton

Cutback Bitumen RC-70 (ASTM D2028 or AASHTO M81-92 2008) - Technical Specifications

Properties	Units	Limits	Test Methods
Kinematic Viscosity at 60°C	mm2/s	70-140	ASTM D-2170
Flash Point (Tag Open-Cup), Min	°C	-	ASTM D-1310
DISTILLATION TEST: (Distillate, Volume Percent of Total Distillate to 360°C)
To 190°C	% Vol.	Min. 10	ASTM D-402
To 255°C	% Vol.	Min. 50	ASTM D-402
To 260°C	% Vol.	Min. 70	ASTM D-402
To 316°C	% Vol.	Min. 85	ASTM D-402
Residue from distillation to 360°C, by difference	% Vol.	Min. 55	ASTM D-402
TEST ON RESIDUE FROM DISTILLATION:
Viscosity at 60°C	Pa.s	60-240	ASTM D2171
Ductility at 25°C	CM	Min. 100	ASTM D-113
Solubility in Trichloroethylene	% Wt	Min. 99	ASTM D-2042
Water	% Wt	Max. 0.2	ASTM D-95

Main Applications Of Cutback Bitumen RC-70

The main applications of Cutback Bitumen Rapid Curing 70 (RC-70) are in road construction and maintenance, particularly where quick setting and effective bonding are essential. Key applications include:

Prime Coating: Cutback Bitumen RC-70 is often used as a prime coat on granular or unbound surfaces to prepare them for asphalt layers, promoting strong adhesion.
Surface Dressing: It is applied in surface dressing, where it is sprayed onto road surfaces and then covered with aggregate to create a durable, protective layer.
Cold Mix Asphalt: Cutback Bitumen RC-70 is utilized in cold mix asphalt for repairing potholes and other surface defects, allowing for quick repairs without the need for heating.
Dust Control: It can be used to control dust on unpaved roads by binding loose particles together, enhancing road surface stability.
Crack Sealing: Cutback Bitumen RC-70 is effective for sealing cracks in pavements, preventing moisture infiltration and extending the lifespan of the road.
Chip Sealing: It is used in chip sealing applications to provide a quick-setting binder for the aggregate, improving road surface texture and durability.

Cutback Bitumen RC-70's rapid curing and easy application make it ideal for projects requiring fast results and strong bonding, especially in varying weather conditions.

Various Packing Method for Cutback Bitumen RC70

Packing cutback bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of cutback bitumen, the transportation method, and the end-use. Here are the various methods used to pack cutback bitumen:

Steel Drum Packing

Cutback Bitumen is commonly packed in new or re-conditioned steel drums, which are robust and provide good protection during transportation.

Drum Specification

Tare Weight	16±0.5Kg
Net Weight	190±5Kg
Gross Weight	206±5Kg

Loadability in Containers

	No. of Drums	Net Weight
In 20Ft Contianer
with Pallet	80	~14.8 Ton
without Pallet	80	~14.80 Ton
In 40Ft Contianer
with Pallet	140	~25.90 Ton
without Pallet	140	~25.90 Ton

IBC Tank Packing

Cutback Bitumen is commonly packed in new IBC tank or re-conditioned IBC tank, which are robust and provide good protection during transportation.

IBC Tank Specification

Tare Weight	65±3Kg
Net Weight	950±50Kg
Gross Weight	1015±50Kg

Loadability in Containers

	No. of Tanks	Net Weight
In 20Ft Container	20	~19.0 Ton
In 40Ft Container	28	~27.0 Ton
