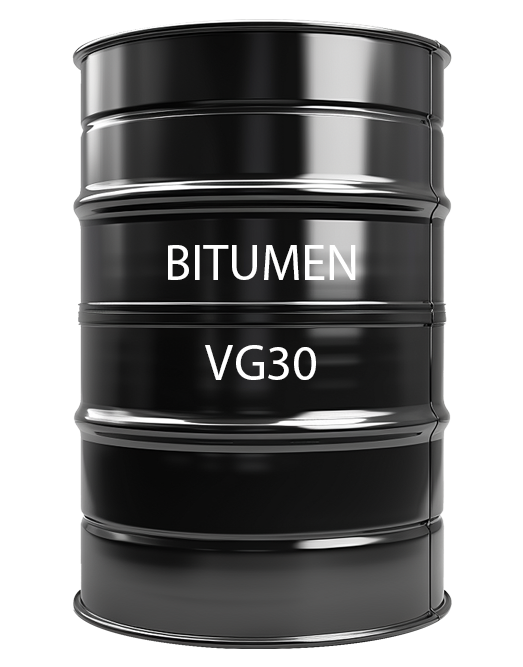

Bitumen VG30

Bitumen VG30 is a viscosity-graded bitumen primarily used in hotter climates and for roads that experience heavy traffic loads. It has a higher viscosity than VG10 and VG20, making it more suitable for regions with high temperatures and for applications that require more durability and strength.

• Appearance: Black solid or a viscous liquid
• Standards: IS 73:2013
• HS Code: 27132000

Package: Bitumen are packed in

• New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
• Jumbo Bags of 1Ton
• Bulk Vessel / Bitumen Tank Container

• TDS Technical Data Sheet - EN (English)
• SDS Safety Data Sheet - EN (English)

Bitumen VG30 (IS 73:2013) - Technical Specifications

Main Applications Of Bitumen VG30

The main applications of Bitumen VG30 are in road construction and maintenance, particularly in regions with hot climates and areas with heavy traffic loads. Below are the primary uses:

1. Construction of High-Traffic Roads:VG30 bitumen is widely used for paving high-traffic roads such as highways, expressways, and urban streets. Its higher viscosity makes it ideal for road surfaces that need to withstand heavy loads and frequent traffic.

2. Hot Mix Asphalt (HMA):It is used in the production of dense bituminous macadam (DBM) and bituminous concrete (BC). These are essential for creating durable road layers, ensuring that roads remain stable and resistant to deformation under traffic pressure.

3. Roads in Hot Climates:VG30 is specifically formulated for hot climates. It can withstand high road temperatures, preventing the bitumen from becoming too soft and prone to rutting or deformation.

4. Heavy-Duty Pavements:This grade of bitumen is used for flexible pavements that need to handle heavy loads, such as truck routes, industrial roads, and airfield runways.

5. Rutting Resistance:VG30 provides superior resistance to rutting and deformation caused by the combination of high traffic loads and elevated temperatures, making it ideal for use in areas where these conditions prevail.

6. Airport Runways and Heavy-Duty Applications:It is also employed in the construction of airport runways, where durability and resistance to thermal stress are crucial.

Its higher viscosity ensures long-lasting, durable road surfaces in demanding environments.

Various Packing Method for Bitumen

Packing bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of bitumen, the transportation method, and the end-use. Here are the various methods used to pack bitumen:

Drum Packing

Bitumen is commonly packed in steel drums, which are robust and provide good protection during transportation.

Jumbo Packing

Bitumen is packed in high-density polyethylene (HDPE) bags and are lined with a plastic bag to prevent leakage.

Tanker Vessel

Bitumen can be transported in bulk using specially designed tankers equipped with heating systems to maintain the bitumen in a molten state.

Tank Container

These are large, insulated containers used for the international transport of bitumen.
