Penetration Test on Bitumen

Bitumen is a product of crude oil distillation. It's a black, sticky and viscous material commonly used in road construction and waterproofing applications. The penetration grade of bitumen refers to its level of hardness or stiffness, which is measured using a standard penetration test. Bitumen penetration test is done to evaluate the consistency and hardness of bitumen which helps to determine the penetration value.

Standard test method for bituminous penetration test is ASTM D5. ASTM International, known as American Society for Testing and Materials, is an international standards organization which develops and publishes voluntary consensus technical standards for a wide range of materials, products, systems and services.

Steps to Bitumen Penetration Test:

• 1. Sample of bitumen must be prepared primarily. For the sample, bitumen can be taken from a bulk source or a bitumen tank container. The sample must accurately represent the material being tested.
• 2. The collected bitumen sample is then conditioned to a specific temperature, typically between 25-30 degrees celsius. This is done to eliminate temperature related variations.

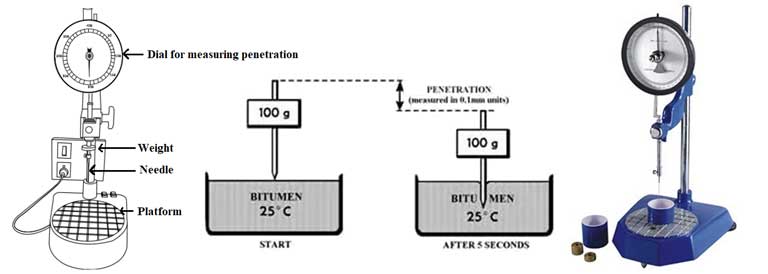

• 3. To conduct the test, we need a few apparatus like a penetrometer, a needle and a test container. The conditioned bitumen sample should be filled in the test container and leveled.
• 4. A stainless steel needle is carefully positioned vertically above the bitumen sample. Then, a specific weight is applied to the needle.
• 5. The needle is then allowed to penetrate the bitumen sample for a specific time duration.
• 6. After the defined time, depth to which the needle has penetrated the sample is measured in tenths of a millimeter or hundredths of an inch. This measurement is known as the penetration value.
• 7. The test is repeated multiple times with fresh samples to ensure accuracy and consistency. Final result would be the average of multiple penetration values reported.

The penetration value obtained would indicate how hard or soft the bitumen sample tested. Lower the penetration values indicate harder the bitumen and higher values indicate softer bitumen. Based on the specific ranges of penetration values obtained, different penetration grades are assigned which will allow engineers and contractors to select the appropriate bitumen grade for their intended applications.

Bitumen penetration grade testing is just one of several tests used to evaluate bitumen properties. Other tests, such as viscosity, softening point, and ductility tests, are often performed to obtain a comprehensive characterization of bitumen's behavior and suitability for various applications.
